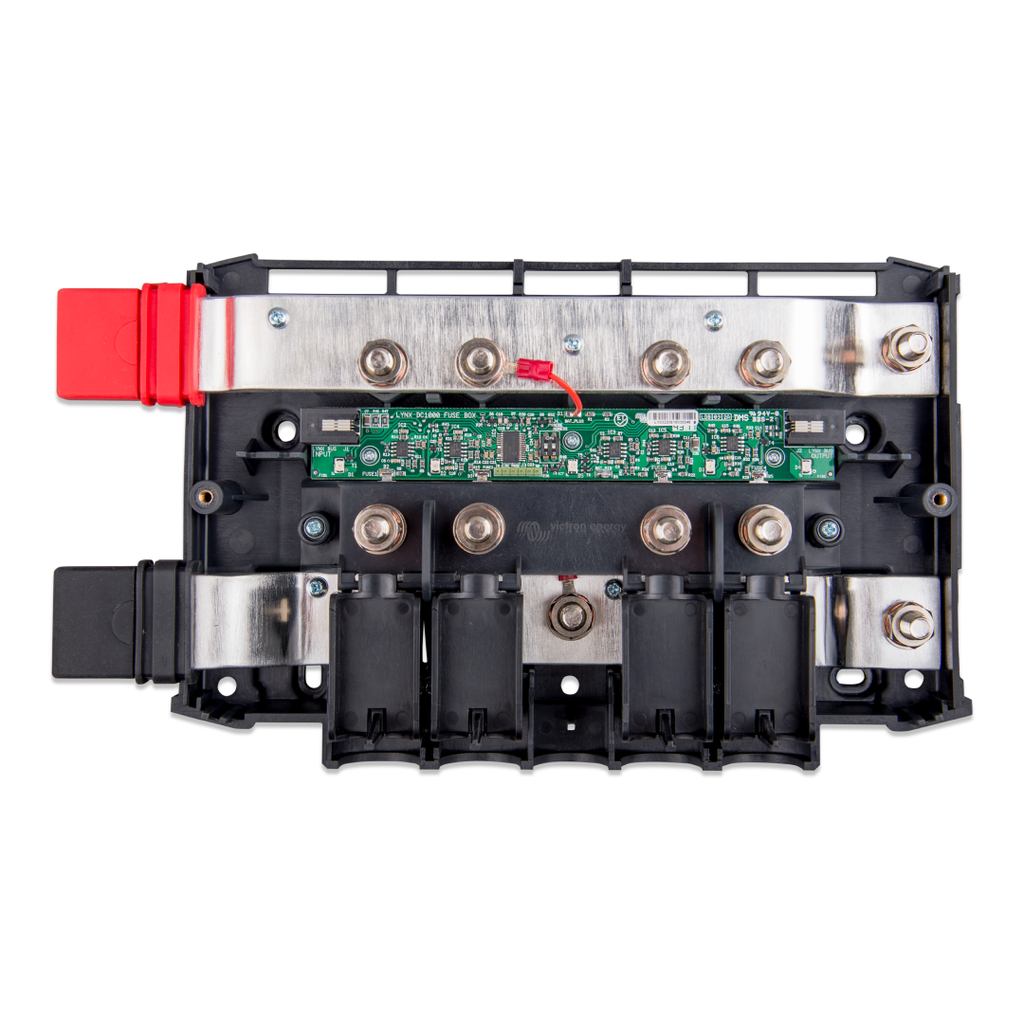

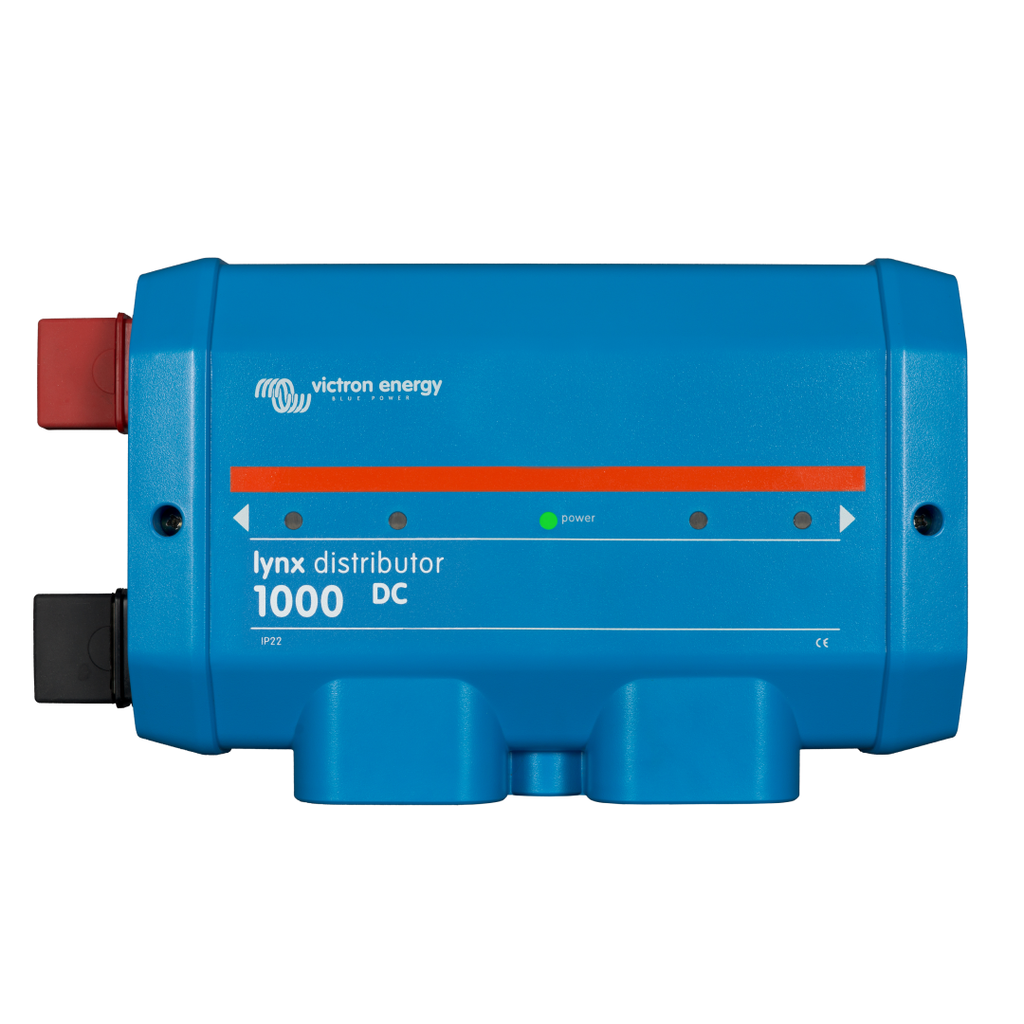

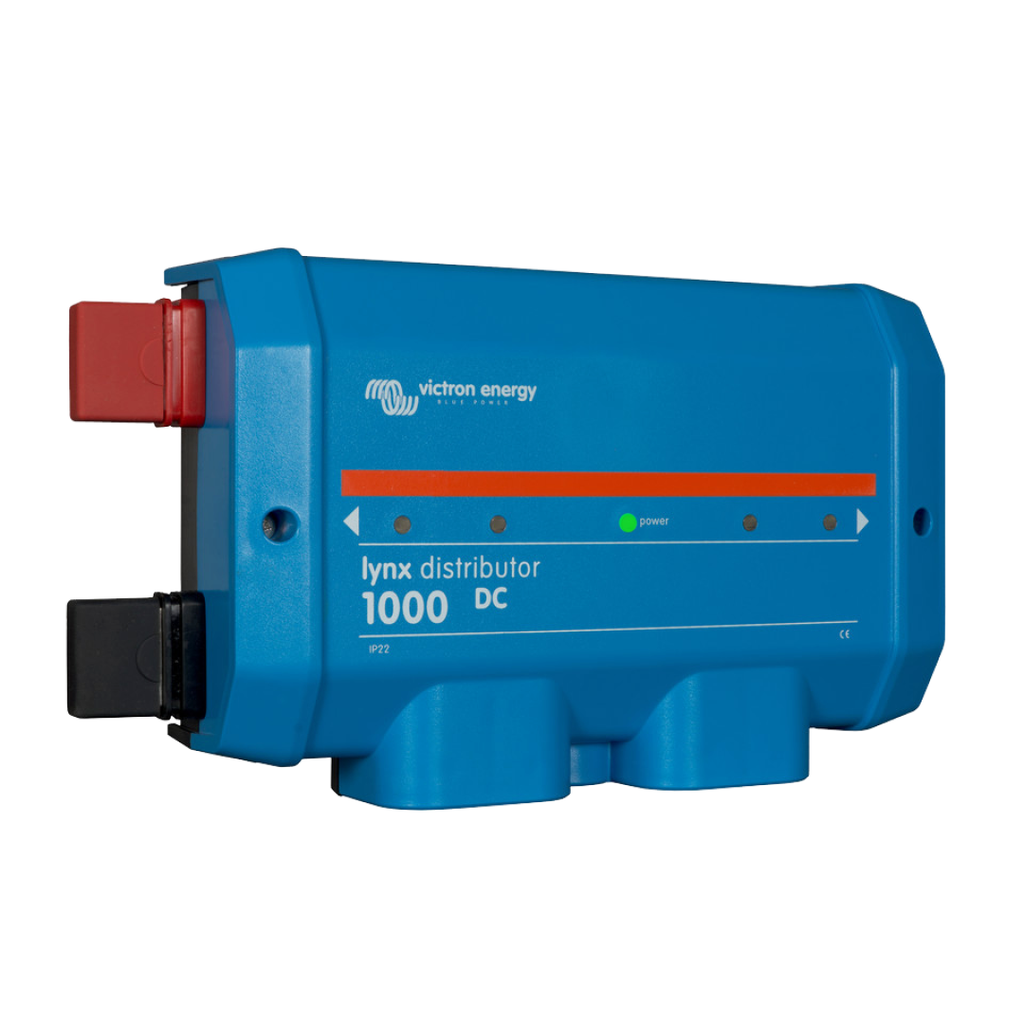

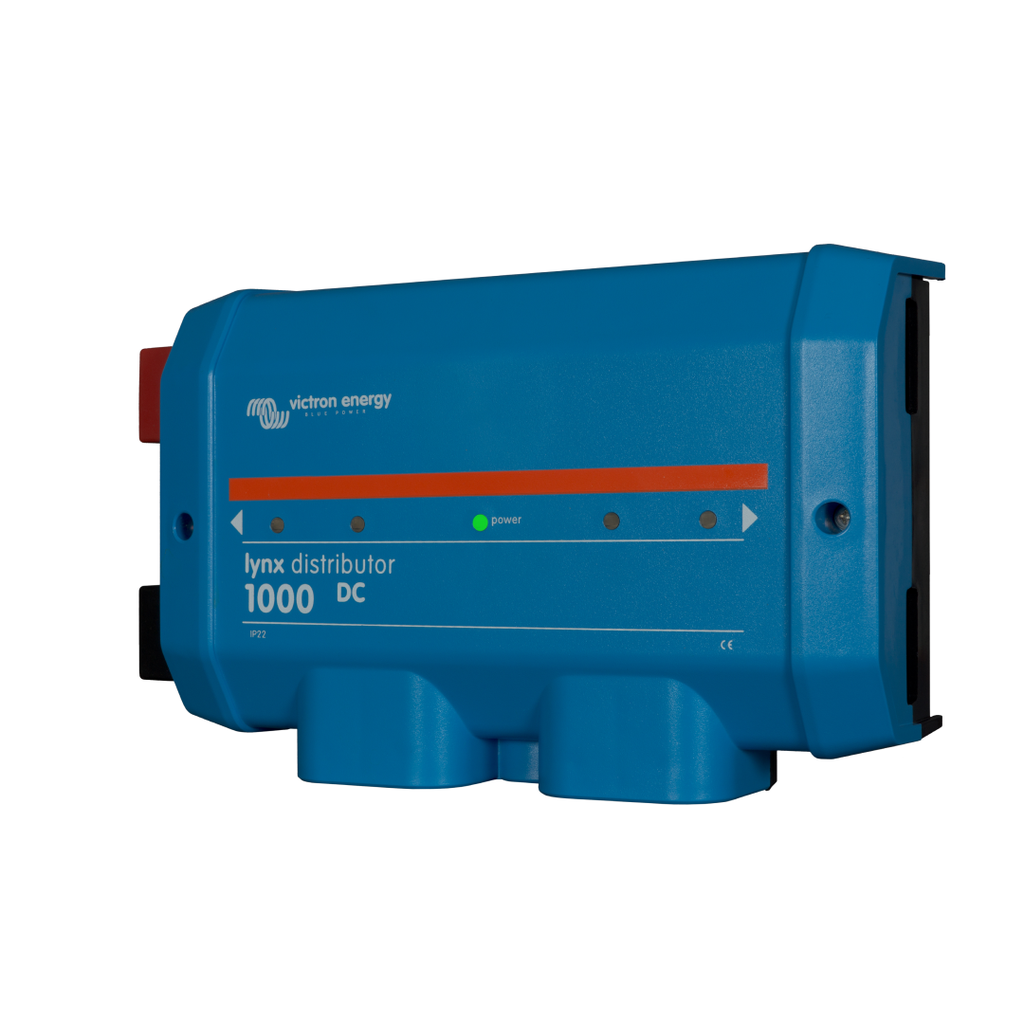

Victron Lynx Distributor (M10)
Features:
- Modular DC Busbar
- Locations for up to 4 DC Fuses
- Monitor the Status of Each Fuse
- Individual DC Fuses per Group
- LED Status Indicator
A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.
Product Specification
| Voltage range | 9 - 60Vdc |
| Supported system voltages | 12, 24 or 48V |
| Reverse polarity protection | Yes (1) |
| Current rating | 1000Adc continuous |
| Power consumption (2) | Maximum 100mA (with all LEDs illuminated) |
| Busbar | M8 or M10 |
| Power(3) and data(4) | 40 cm RJ10 cable (included) |
| Enclosure material | ABS |
| Enclosure dimensions (hxlxw) | 290 x 170 x 80 mm |
| Unit weight | 2.2 kg |
| Busbar material | Tinned copper |
| Busbar material (hxw) | 8 x 30mm |
| Operating temperature range | -40°C to +60° |
| Storage temperature range | 40°C to +60° |
| Humidity | Max. 95% (non-condensing) |
| Protection class | IP22 |
